Model Mistral Series HVLS (High Volume Low Speed) Commercial Ceiling Fans

DIMENSIONS(subject to change without notice)

Model Diameter (ft) Min. Dist Ceiling A Weight Installed Installed (lbs) Max. Speed (rpm) Consumption Max. (Kw) Current Max. (A) Noise Level (dBA) Airflow (cft/h)
WZ 2500 8 2.50 ft 182 210 1,2 2,7 < 60 7.4
WZ 3000 10 3.25 ft 190 160 0,6 1,4 < 60 10.9
WZ 4000 12 3.25 ft 207 100 0,7 1,7 < 55 13.1
WZ 5000 16 5.00 ft 249 80 0,9 2,0 < 45 18.7
WZ 6000 20 5.00 ft 267 65 1,1 2,7 < 45 21.2
WZ 6000 HP 20 5.00 ft 291 75 0,8 1,9 < 45 23.6
WZ 7000 23 5.00 ft 284 38 0,5 1,4 < 45 22.9
WZ 7000 HP 23 5.00 ft 309 50 0,7 1,7 < 45 30.0

Power Supply for all models 200-480V Three-phase 50/60 Hz

Request a quote
Category:

Description

APPLICATION

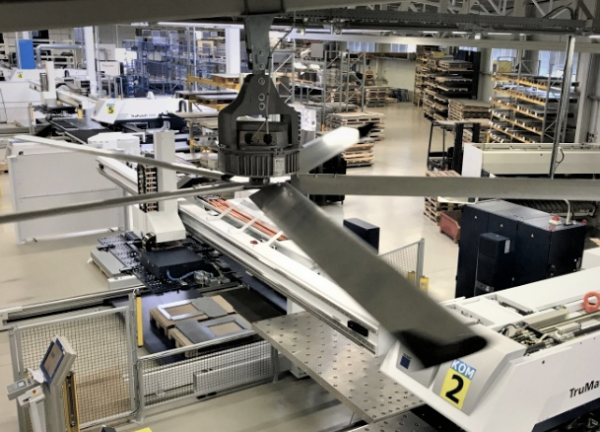

The MISTRAL series satisfies the market needs in terms of technology. Activated by brushless motor with integrated inverter, it offers high energy efficiency with low consumption.

Thanks to the integrated electronics, they can work perfectly in line with each other through the management of the Fantastic system, communicating via Modbus and allowing complete control of the individual fans. Motor and electronic components are made of aluminum alloy, guaranteeing an IP65 degree of protection, making them suitable for every work environments. The diameters available for this series are 8, 10, 12, 16 and 23 feet (with possibility of customization). The blade profile is of the Naca type. The MISTRAL series is fully UL certified.

KEY FEATURES

  • DIAMETERS: – from 8 to 23 feets and customizable Blade Design NacaAirfoil
  • MOTOR:- IP65 brushless motor-inverter with remote control
  • ANCHORS:- for any type of installation
  • CUSTOMIZATION:- Water Transfer Printing/ Painting on demand
  • APPLICATIONS:- Industrial, Commercial, Zootechnic
